New design European standard to European standard EV cable
AC.530.041
New design European standard to European standard EV cable
minimum order
5
Supply Ability
1000 / Day
Stock Time
30Day
Quantity
New design European standard to European standard ev cable
Electrical Performance

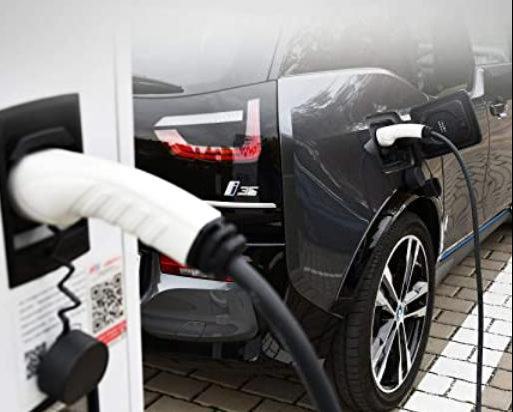

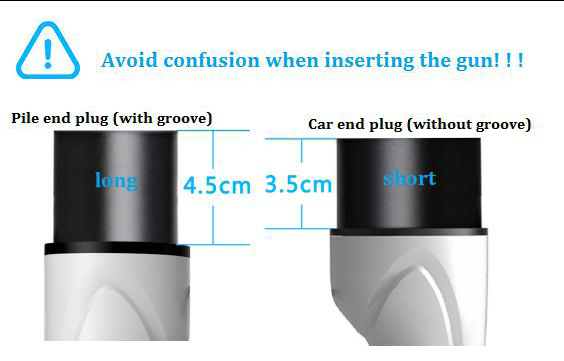

The pile end charging gun is inserted into the car end charging gun for extension cable use.

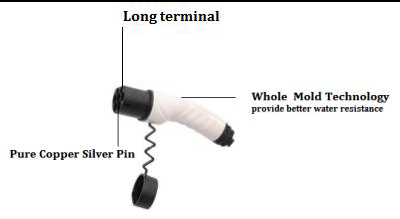

Applied Materials
Shell Material:thermoplastics,flame retardant grade UL94-V0

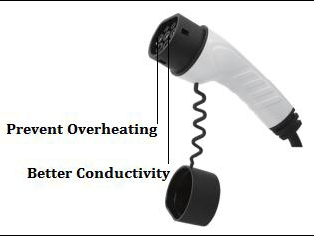

contact bush:Copper alloy, silver plating
Pin:Copper alloy，silver + thermoplastic on the top
Features
1.Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET 2-lle.
2.Product assembly conforms to IEC 61851-1-2010 charging mode 3 connection mode B2.
3.Reliable materials,flame retardant,pressure resistance, abrasion resistance,impact resistance,impact
resistance and oil resistance.

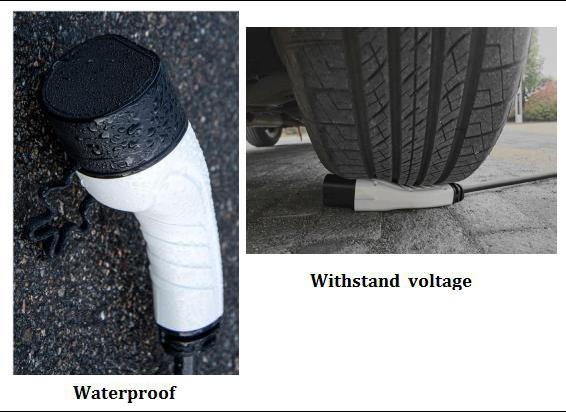

4.Excellent protection performance,IP55 protection level of the plug (working state) high security.
Cautions
﹒DO not step on the cable, do not pull it, do not fold it up and do not know it.
﹒DO not place the charging cable near high-temperature objects.
﹒DO not use the charging cable inextreme temperatures (normal operating range20°C to +50°C).
﹒Make sure that the charging plug and the cable are free from any signs of scratches, rust, cracks, etc.
﹒DO not charge if the power outlet is damaged, rusted, cracked or loosely connected.
﹒Before charging, make sure the power plug and outlet are compatible.
﹒Carefully read these instructions and your vehicle owner’s handbook before charging your EV.
﹒DO not use this product if the cable is damaged.
﹒The product must be grounded.
﹒DO not insert any fingers into the charging plug.
﹒The unit contains no user serviceable parts. DO not try to repair or service the charging cable yourself.
﹒If the unit does not work properly in accordance with the operating instructions, do not use this unit.
﹒Use the product under normal away from high temperature erosive materials or ignition source.
﹒DO not contact metal conductor to prevent electric shock accident.
﹒Check the power distribution cable for damage before powering up.
Standards
﹒Plug the vehicle plug into the socket of your vehicle.
﹒Make sure that the vehicle connector is fully inserted until it clicks into place.
﹒Insert the charging cable into the carrying case.
Stronger and more durable

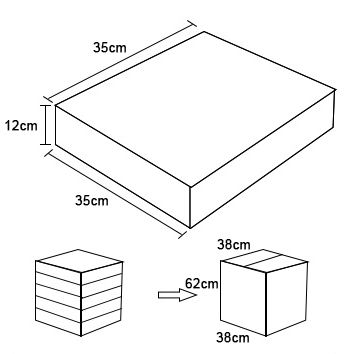

By individual packaging，the product is packed in a 35*35*12 inner box (0.4KG), and then 5pcs in a 38*38*62 master box (1.7KG)
Electrical Performance
| Contact bush | Silver plated brass |
| Contact Resistance | 0.5mΩMax |
| Withstand voltage | 2000V |
| Terminal temperature rise | <50K |
| Insulation resistance | >1000MQ(DC500V) |
| Total cable length | 5 meters or customized |
| Operating temperature | -30℃~+50℃ |
| Degree of protection | IP65 |
| Cable material ( Optional ) | Specification | Model NO. | Net weight (KG) |
| TPE | 16A 1 phase 3.5kw | AC.530.041.01 | 1.8 |
| 32A 1 phase 7kw | AC.530.041.02 | 2.9 | |
| 16A 3 phase 11kw | AC.530.041.03 | 2.5 | |
| 32A 3 phase 22kw | AC.530.041.04 | 3.6 | |
| TPU | 16A 1 phase 3.5kw | AC.530.041.05 | 1.8 |
| 32A 1 phase 7kw | AC.530.041.06 | 2.9 | |
| 16A 3 phase 11kw | AC.530.041.07 | 2.5 | |
| 32A 3 phase 22kw | AC.530.041.08 | 3.6 |
The pile end charging gun is inserted into the car end charging gun for extension cable use.
Applied Materials
Shell Material:thermoplastics,flame retardant grade UL94-V0
contact bush:Copper alloy, silver plating
Pin:Copper alloy，silver + thermoplastic on the top
Features
1.Conform to the provisions and requirements of 62196-2 IEC 2010 SHEET 2-lle.
2.Product assembly conforms to IEC 61851-1-2010 charging mode 3 connection mode B2.
3.Reliable materials,flame retardant,pressure resistance, abrasion resistance,impact resistance,impact
resistance and oil resistance.
4.Excellent protection performance,IP55 protection level of the plug (working state) high security.
Cautions
﹒DO not step on the cable, do not pull it, do not fold it up and do not know it.
﹒DO not place the charging cable near high-temperature objects.
﹒DO not use the charging cable inextreme temperatures (normal operating range20°C to +50°C).
﹒Make sure that the charging plug and the cable are free from any signs of scratches, rust, cracks, etc.
﹒DO not charge if the power outlet is damaged, rusted, cracked or loosely connected.
﹒Before charging, make sure the power plug and outlet are compatible.
﹒Carefully read these instructions and your vehicle owner’s handbook before charging your EV.
﹒DO not use this product if the cable is damaged.
﹒The product must be grounded.
﹒DO not insert any fingers into the charging plug.
﹒The unit contains no user serviceable parts. DO not try to repair or service the charging cable yourself.
﹒If the unit does not work properly in accordance with the operating instructions, do not use this unit.
﹒Use the product under normal away from high temperature erosive materials or ignition source.
﹒DO not contact metal conductor to prevent electric shock accident.
﹒Check the power distribution cable for damage before powering up.
Standards
﹒Plug the vehicle plug into the socket of your vehicle.
﹒Make sure that the vehicle connector is fully inserted until it clicks into place.
﹒Insert the charging cable into the carrying case.
Stronger and more durable
By individual packaging，the product is packed in a 35*35*12 inner box (0.4KG), and then 5pcs in a 38*38*62 master box (1.7KG)
