Type 2 32A 7kw Wallbox ev charger (Type A)

Current	32A  (8/10/13/16/32A)
Voltage	250V
Power	7KW
Frequency	50/60Hz
Charging interface	European standard
Cable material	TPU
Total cable length	5 meters
Operating temperature	-30℃~+50℃
Degree of protection	Charging gun: IP55, charging station: IP65

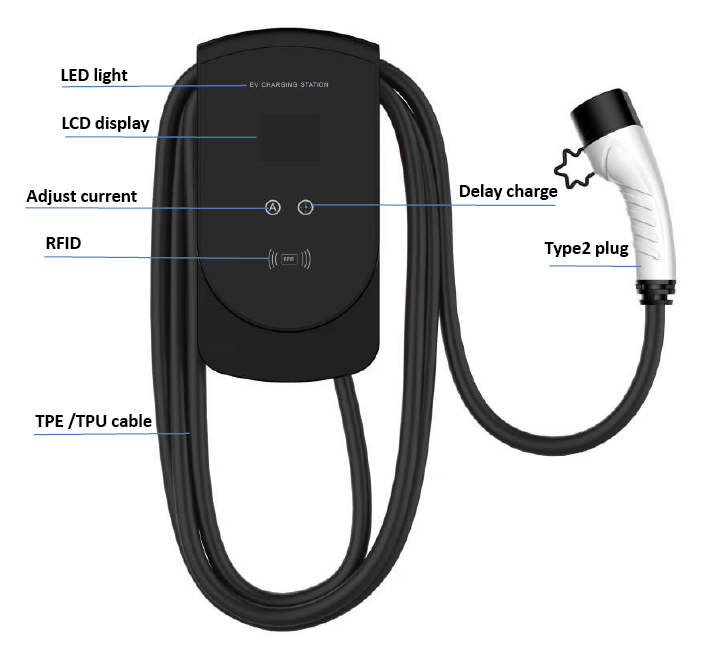

User interface	LED indicator + LCD display(2.8 inch)+RFID



Option	Model NO.	Net weight (KG)
RCD:Type A	AC.530.036.01	4
RCD:Type A+DC6mA	AC.530.036.02	4

Product Features
1. With RFID function to start or stop charging.
2. Connect to APP via Bluetooth or WIFI.
3. With the function of appointing charging time and appointing charging duration.
4. Equipped with display screen to show charging information in real time.
5. With overload protection, over-voltage protection, under-voltage protection,
over-temperature protection, leakage protection, emergency stop and other functions.

Installation Steps

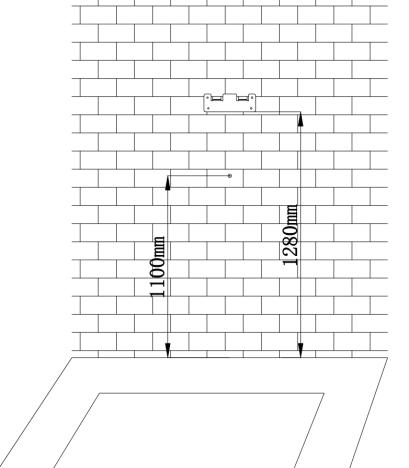

Step 1 :According to the size of the steel plate's hole, using an electric drill to drill a hole in the wall at a suitable height, then put in the expansion tube. and use long screws to fix the steel plate(the large one) in the wall.

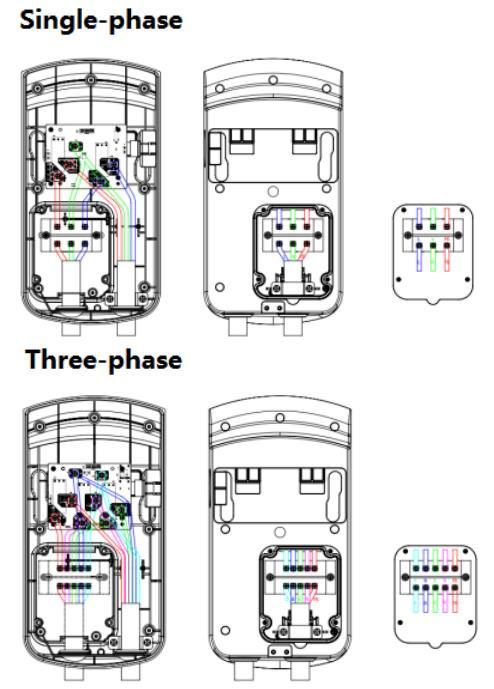

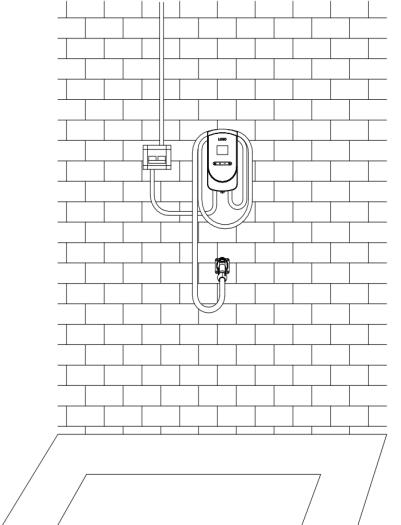

Step 2 :Installation of charging station.

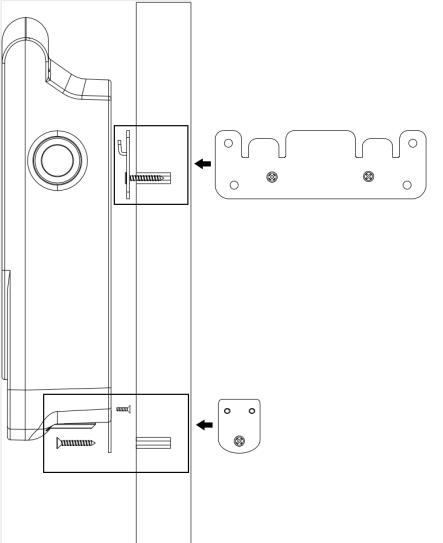

Step 3: After installing the steel plate (the small one) on the end of the control box using short screws, hang the equipment on the steel plate (the large one) and fix the steel plate (the small one) on the wall using long screws.

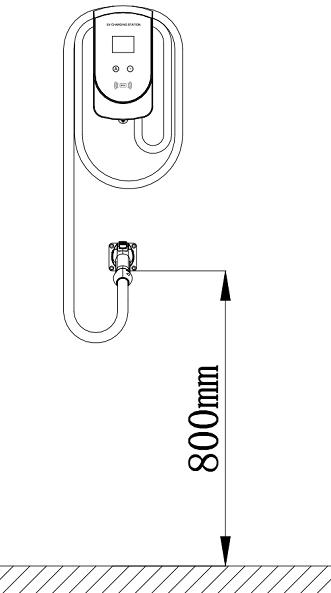

Step 4: Install the hook.

Step 5: Turn on the power to confirm that the LED light and the display start normally.

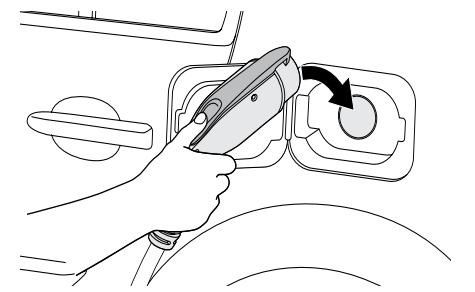

Step 6: Try to start charging by inserting the gun and swiping the card.

Package


By individual packaging，the product is packed in a 45*45*12.5 inner box (0.6KG), and then 4pcs in a 48*48*52 master box (1.8KG)
